Portainer

Playground

Using fy-infrastructure.

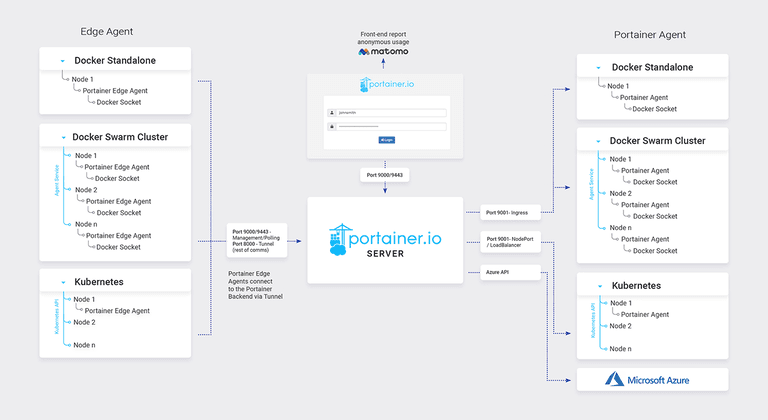

Architecture

• Portainer consists of two elements, the Portainer Server, and the Portainer Agent.
• Addionally, edge agent, an agent that needed for remote, sending the data within different network

Installing

I used this blog as reference (opens in a new tab)

1. Create docker volume

docker volume create fy-portainer-data

2. Run with docker

docker run -d -p 18000:8000 -p 1443:9443 --name portainer --restart=always -v /var/run/docker.sock:/var/run/docker.sock -v fy-portainer-data:/data portainer/portainer-ce:latest

3. After that you should create a password,

4. Then, you could visit the homepage. You should not do anything to manage your own local docker environment.

Features

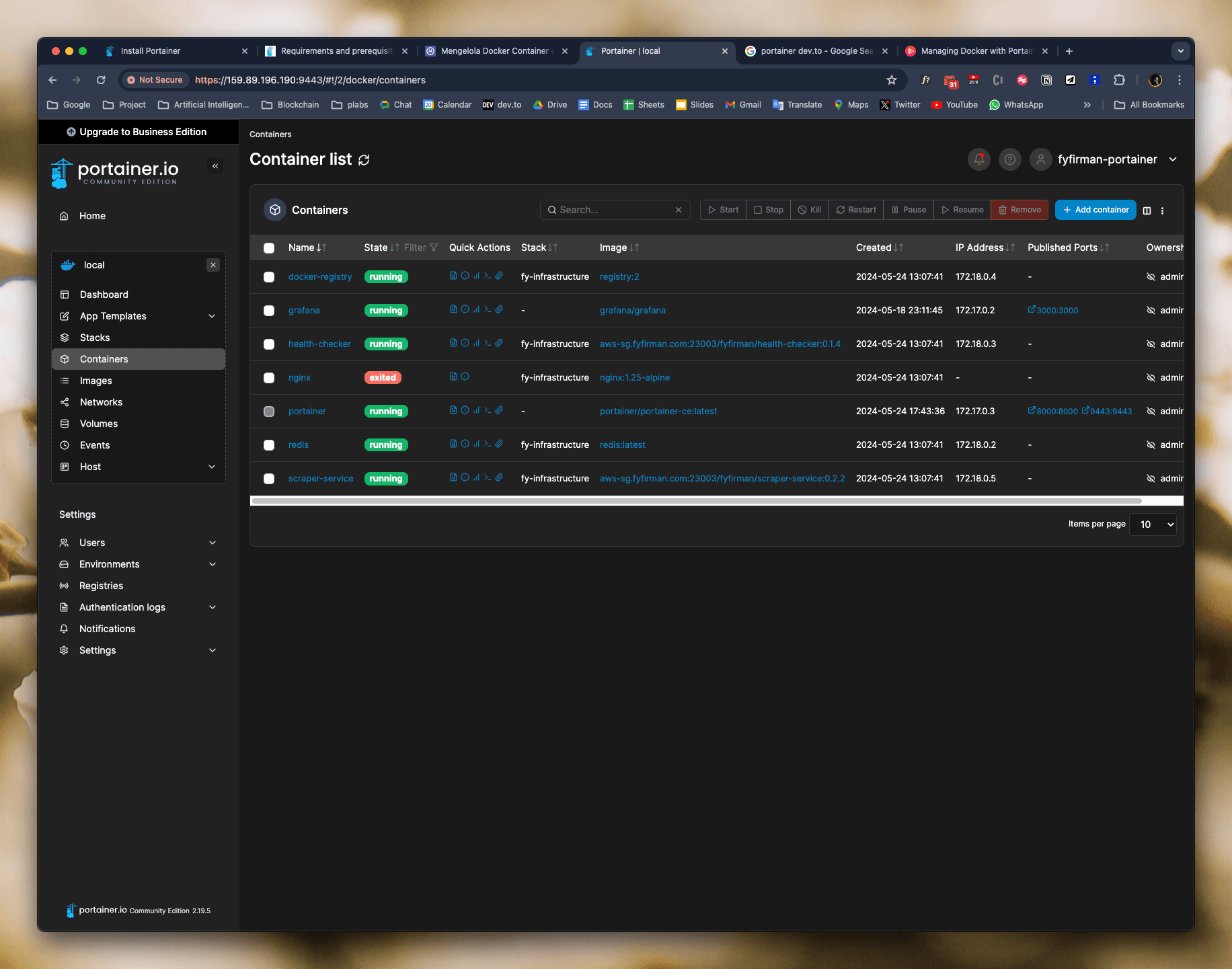

• Manage Container

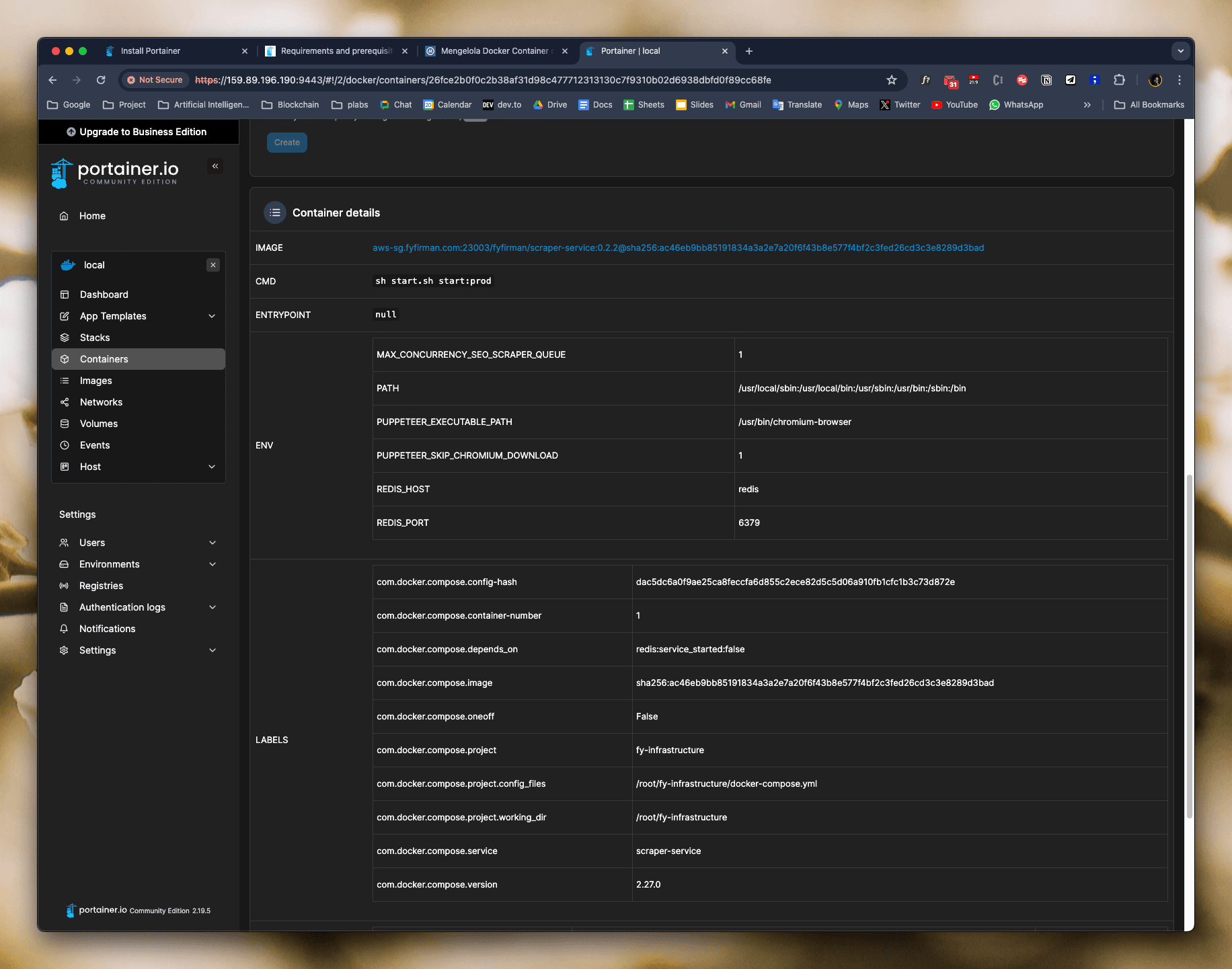

• View Container Details

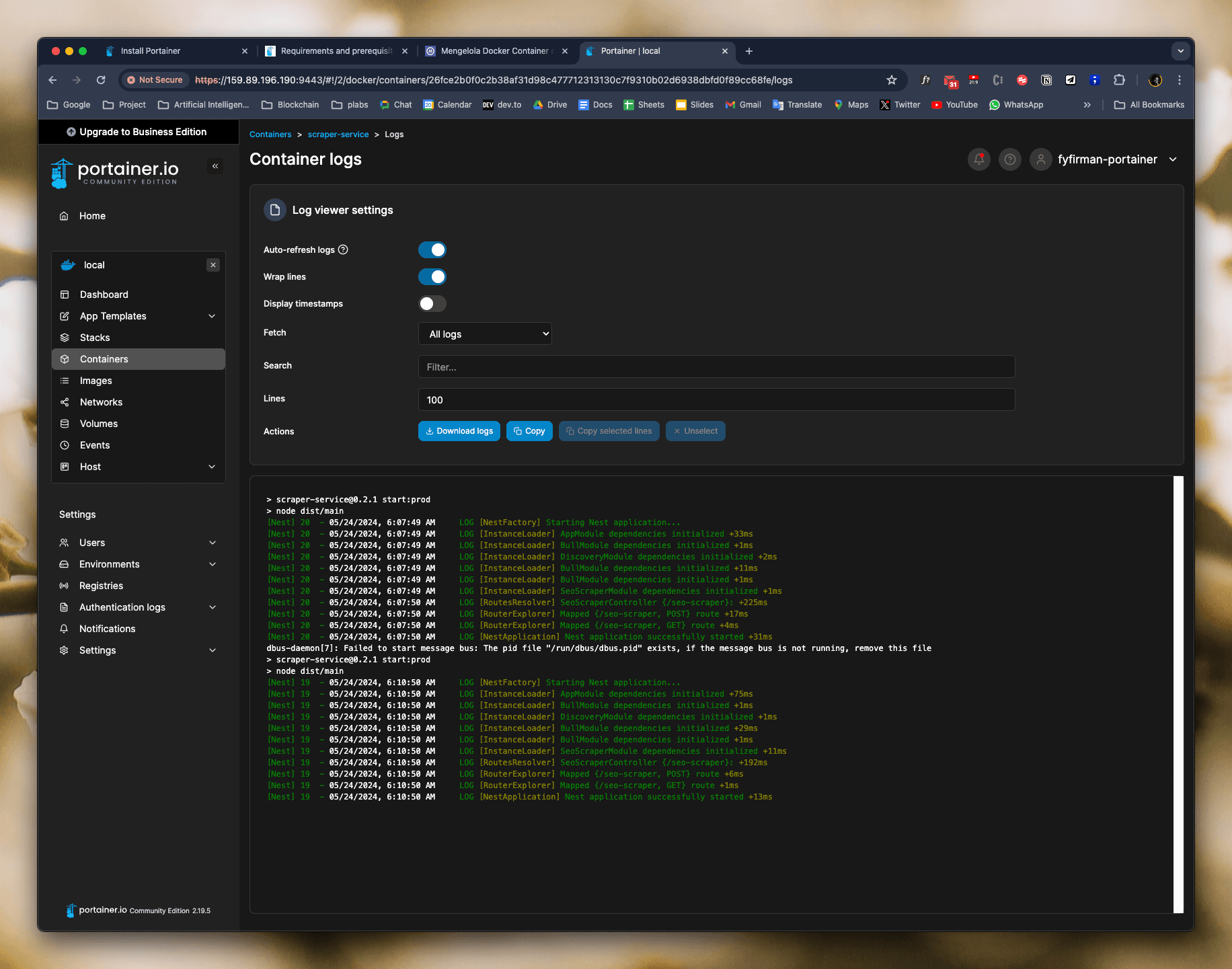

• View Container Logs

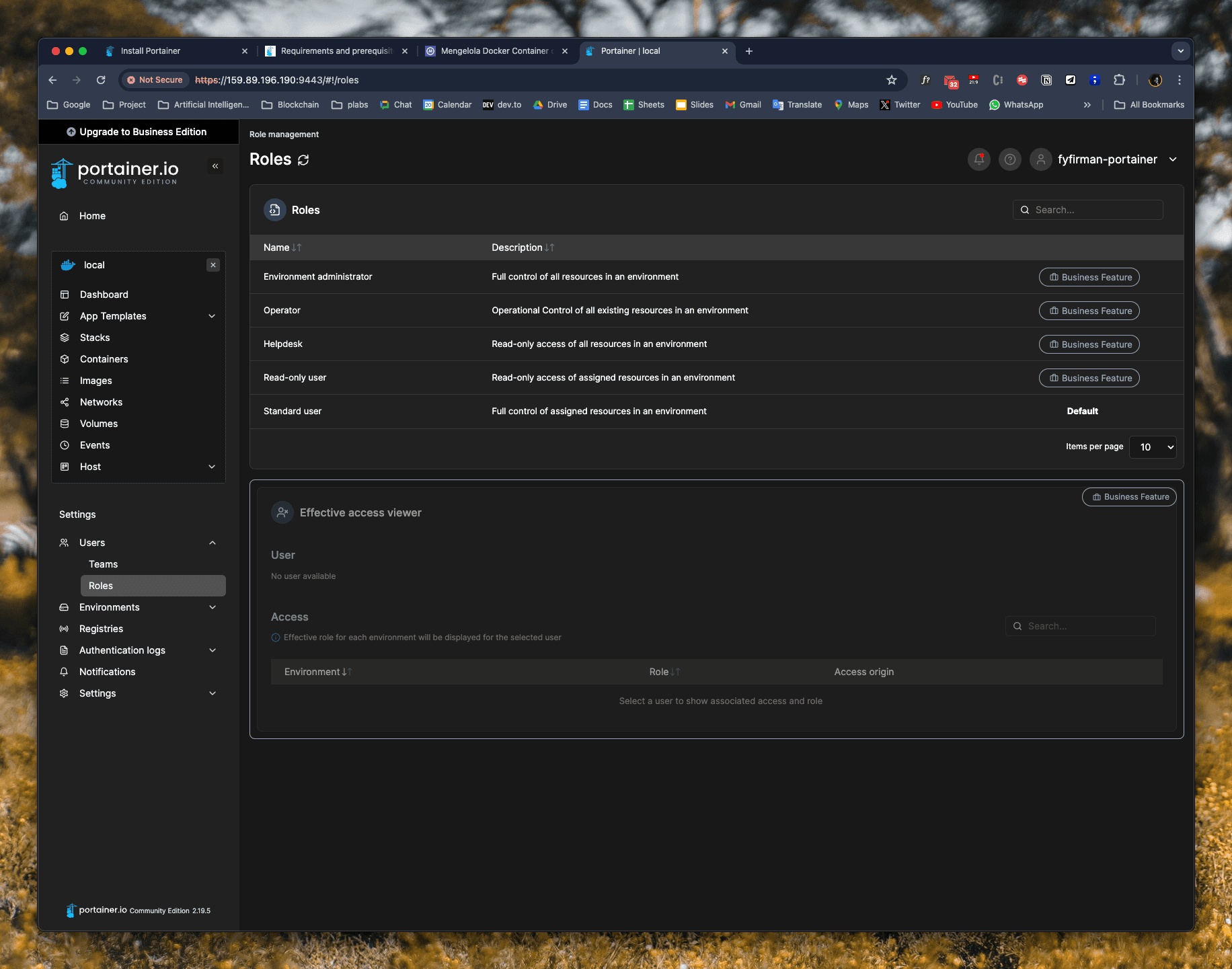

• Permission Role Based (Business-only)

Deploy with Stack

Stack is docker compose.

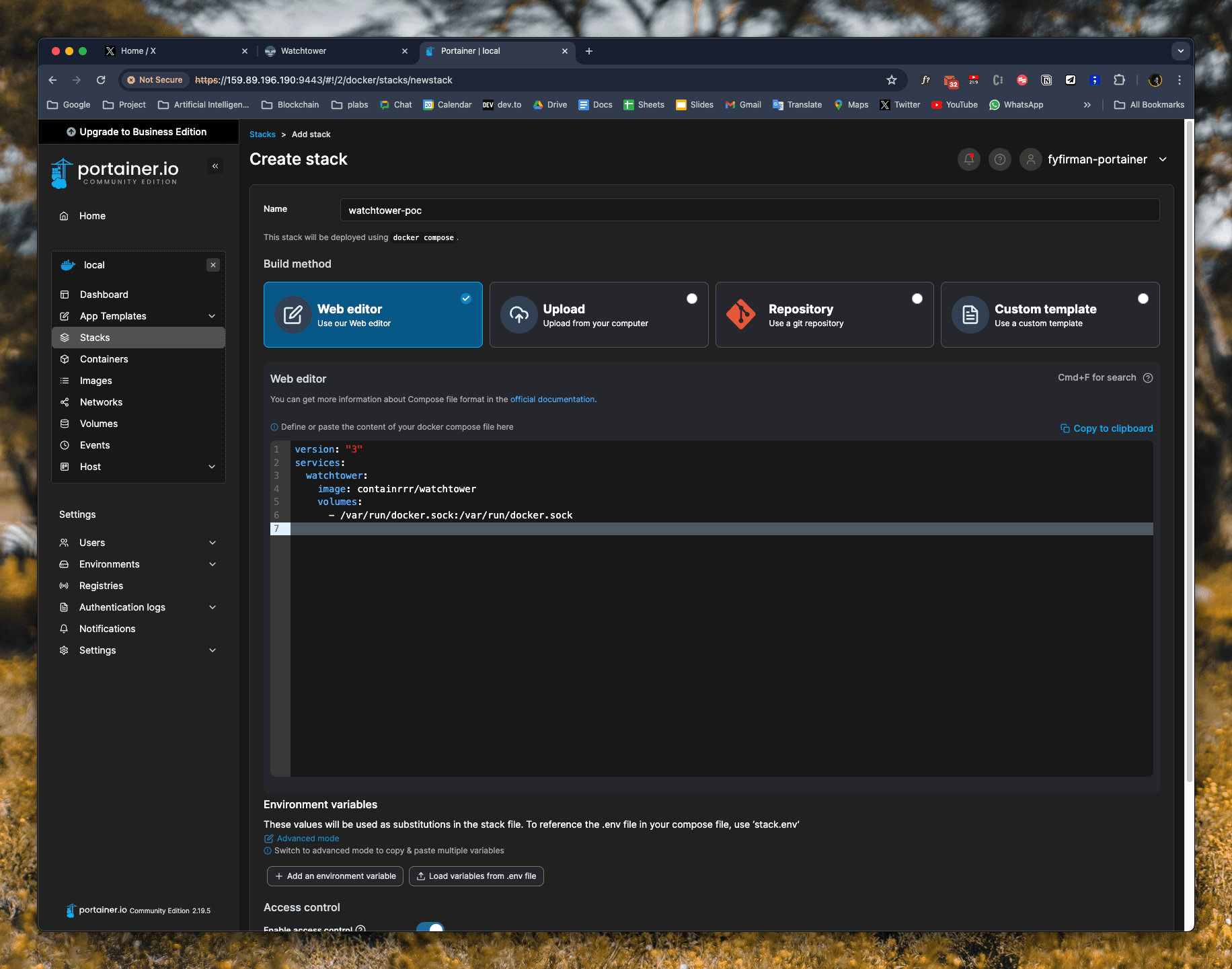

1. To deploy with stack you could open your environment > stack > add stack

2. Then, you can paste the docker compose file here

References

• Documentation (opens in a new tab)
